Name: Roads and Rail

Display Field: RDNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Whangarei District Councils layer of roads and rail in the Whangarei district.The layer contains public as well as private roads and is one of our base layers used across most of our maps.

Service Item Id: b1e0bf49388b4595ba1cc8f66206c42a

Copyright Text: Whangarei District Council

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 20000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1667419.2715999996
YMin: 6005853.3654
XMax: 1742301.0746
YMax: 6092250.4728
Spatial Reference: 2193  (2193)  VCSWkid(105792)  LatestVCSWkid(4440)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: CLASS
Field 2: N/A
Field 3: N/A
Field Delimiter: ;
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: STATE HIGHWAY
  Label: State Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [179, 89, 51, 255]
  Width: 4
• Value: ARTERIAL
  Label: Arterial Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 140, 101, 255]
  Width: 3
• Value: COLLECTOR
  Label: Collector Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 140, 101, 255]
  Width: 3
• Value: PUBLIC ROAD
  Label: Public Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 1
• Value: PRIVATE ROAD
  Label: Private Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [156, 156, 156, 255]
  Width: 0
• Value: SERVICE LANE
  Label: Service Lane
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [0, 0, 0, 255]
  Width: 1
• Value: ACCESSWAY
  Label: Accessway
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [156, 156, 156, 255]
  Width: 1
• Value: PAPER ROAD
  Label: Paper road
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [156, 156, 156, 255]
  Width: 0
• Value: Public, Private Maintain
  Label: Public, Private Maintain
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [78, 78, 78, 255]
  Width: 1
• Value: <Null>
  Label: Proposed Road
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [0, 132, 168, 255]
  Width: 1
• Value: RAILWAY
  Label: Railway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID_1 ( type: esriFieldTypeOID, alias: OBJECTID_1 )
• LENGTH ( type: esriFieldTypeDouble, alias: LENGTH )
• RDNAME ( type: esriFieldTypeString, alias: RDNAME, length: 25 )
• RDTYPE ( type: esriFieldTypeString, alias: RDTYPE, length: 4 )
• ALIAS ( type: esriFieldTypeString, alias: ALIAS, length: 30 )
• STATUS ( type: esriFieldTypeString, alias: STATUS, length: 10 )
• TYPE ( type: esriFieldTypeString, alias: TYPE, length: 15 )
• TYPEID ( type: esriFieldTypeInteger, alias: TYPEID )
• CLASS ( type: esriFieldTypeString, alias: CLASS, length: 25 )
• CLASSID ( type: esriFieldTypeSmallInteger, alias: CLASSID )
• LEGALID ( type: esriFieldTypeSmallInteger, alias: LEGALID )
• RDID ( type: esriFieldTypeSmallInteger, alias: RDID )
• RNA_ID ( type: esriFieldTypeInteger, alias: RNA_ID )
• LOCALITY ( type: esriFieldTypeString, alias: LOCALITY, length: 100 )
• RAMM_ID ( type: esriFieldTypeString, alias: RAMM_ID, length: 20 )
• ROUTE_ID ( type: esriFieldTypeInteger, alias: ROUTE_ID )
• FULLNAME ( type: esriFieldTypeString, alias: FULLNAME, length: 50 )
• Shortname ( type: esriFieldTypeString, alias: Shortname, length: 30 )
• Notified ( type: esriFieldTypeDate, alias: Notified, length: 8 )
• X_START ( type: esriFieldTypeDouble, alias: X_START )
• Y_START ( type: esriFieldTypeDouble, alias: Y_START )
• X_END ( type: esriFieldTypeDouble, alias: X_END )
• Y_END ( type: esriFieldTypeDouble, alias: Y_END )
• T1StreetID ( type: esriFieldTypeSmallInteger, alias: T1StreetID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

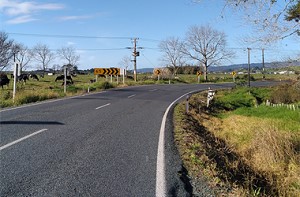

  Iteminfo   Thumbnail   Metadata
